A Guide on How to Make a Cardboard Burner

Capsos
Capsos

I do hope you enjoy these and please make sure you check out my other Indestructible2 on here, Also with that if you are into Bushcraft or would like to see a little more on what I teach then please check my Instagram page Capsos_Bushcraft Have a brilliant day.

Step 1: Things Your Going To Need

FIJARZLIE6H8SY7.MEDIUM
F0VCB1WIE6H8SYA.SMALL_
FPM0RZTIE6H8SZH.SMALL_
You will need the following items.

·

  • 20 X Tea Cake Candles (Approximately)
  • A Side Of A Large Corrugated Cardboard Box
  • Marker Pen
  • Pair Of Scissors
  • Pliers
  • Ruler
  • Tin To Build Your Burner Inside

SAFETY EQUIPMENT

  • An Apron Or Old Clothing
  • Safety Glasses

Step 2: Prepping

FOOLS75IE6H8T0M.MEDIUM
Now Empty Your Tin, With Mine I Emptied The Sweets Into A Bag For Later On. YUMMY

Step 3: Washing

F5ZGNLYIE6H8T1O.MEDIUM

Now due to having the remaining powder within the tin I washed both lid and tin and dried ready.

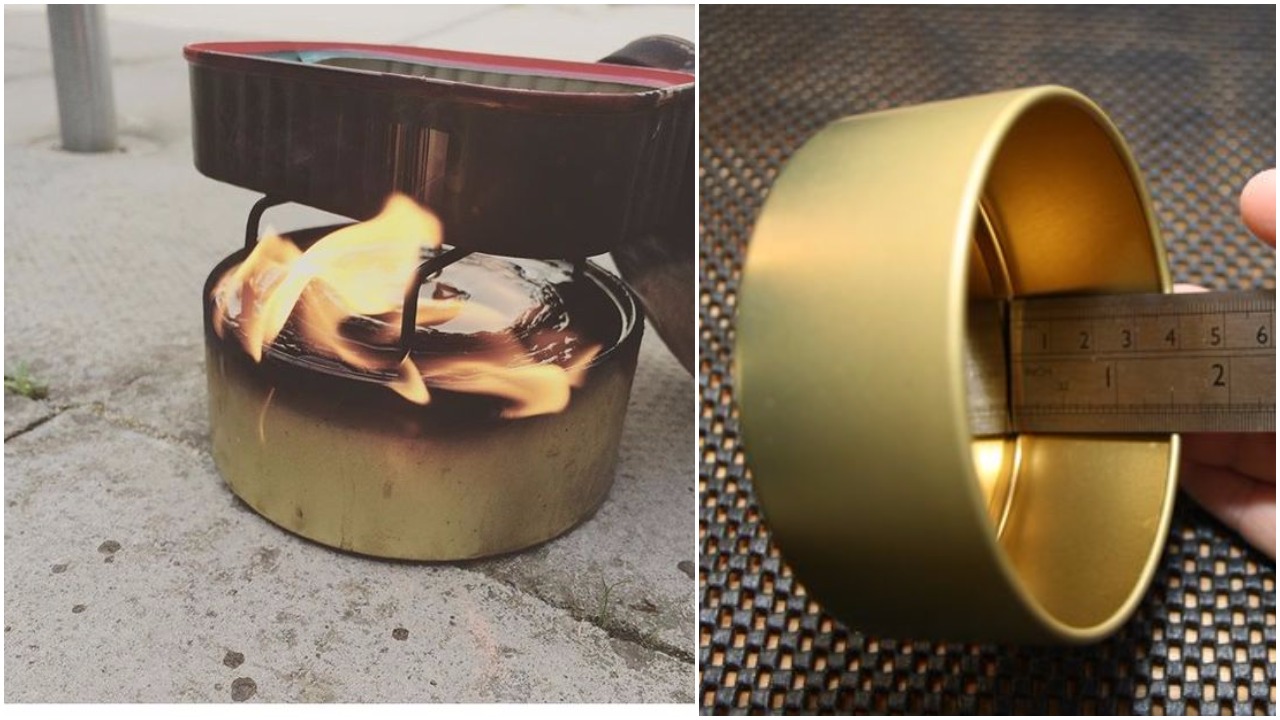

Step 4: Measuring

<
F8MMFM0IE6H8T1R.MEDIUM
Now you want the cardboard to sit snug within the tin and not to high that the lid no longer fits.

Mine roughly measured 34mm in depth to the under lip.

<

Step 5: Measuring And Cutting

F3T193GIE6H8T2T.MEDIUM

FCF0G8RIE6H8T2U.MEDIUM

Now with the 34mm depth of the tin I cut my corrugated cardboard strips to also the same height and kept the full length.

Step 6: Coiling

FZCMPB0IE6H8T31.MEDIUM
FNOT8RMIE6H8T2Y.MEDIUM

With all my strips of cardboard cut to size I started to coil it up in my hand and as one length ran out I added another. This worked out I used about 8 strips of cardboard.

Once all this was coiled up I then squeezed it into the tin. (Looking Like The Photos Above)

Step 7: Tin Lid

F4Z3AOSIE6H8T32.MEDIUM

With the coil of cardboard now inside I re-checked the lid to make sure it still fitted snug and didn’t drop off if the tin was held upside down.

Step 8: WARNING

F7P41EQICGWAIBZ.MEDIUM

ALL ACTIONS AND INJURIES CAUSED WHEN DOING THIS PROJECT IS DOWN TO YOURSELF AND I HOLD NO RESPONSIBILITY FOR ANY INJURIES YOU INCUR.

Step 9: Melting The Wax

FTH91UKIE6H8T33.MEDIUM



FL79H5UIE6H8T34.SMALL_



FQQZN3DIE6H8T4D.SMALL_



FE9BNCWIE6H8T4E.SMALL_

Here you can see I had a tin of wax from a previous Instructables project.

“Fire Pads” – http://www.instructables.com/id/Fire-Pads/

After re-melting the wax on a low temperature on the gas hob to stop from spitting, smoke and Auto Ignition.

to get to this stage you want to take you Tea Cake Candles and remove them form the tin case and remove the metal plug underneath, Sometime this will remove the wick at the same time, but if it doesn’t then just pull the wick loose with the pliers.

Now gently lower into the tin and allow to slowly melt,

**You can add a small amount of paraffin to allow it to burn better, However I don’t use any as I find it can make the food taste funny.

WARNING !!! – DO NOT LEAVE THE TIN EMPTY ON THE FLAME BUT IF YOU DO PLEASE ALLOW THE TIN TO COOL BEFORE ADDING ANOTHER CANDLE TO THE TIN FOR MELTING. You can find more of Capsos work here

Step 10: Pouring

FUGEPZNIE6H8T4G.MEDIUM



FBUVE3HIE6H8T5Q.MEDIUM

With the pliers pinch onto the wax tin and very slowly pour the liquid wax into the corrugated card tin “Watch out this can spit”

This may take two trips depending on the size of your wax melting tin.

NOW LEAVE TO COOL

Step 11: Pot Bars

FSULMR8IE6H8T5S.MEDIUM

With some spare wire I made two C clips that can be pushed into the cardboard and sit a pot on them, if made to the right size then should lay flat in the top of the tin and the lid should also fit.
